Rf Shielded Medical Hospital Doors 1.2m X 2.1m Mri Rf Shielding Door
Introduction
We can offer customized size RF shielding door which can shield well its performance. In usual,
1200mm x 2100mm is the common size for you.
We can offer a complete door with the leaf, frame, metal handle, locks and keys. You can start your construction directly
after receiving the goods.
We can offer customized directions, like left and outward, left and inward, right and inward,
right and outward. Below picture is for your reference. Actually C is the hot sell one in common.
| Inner Size Specification (without frame) | 1200mm(W)×2100mm(H),Or customized | |
| Outer Size Specification (Outer Frame Size) | 1398.5mm(W)×2300.5mm(H) (±2mm), Or customized | |
| Material | Copper Foil and other materials | |
| Shielding Frequency | Magnetic Field(10MHz) ≥100dB | |
| | Electric Field(10-30MHz) ≥100dB | |
| | Plane Wave(30-100MHz) ≥100dB | |
| Packing | In wooden case (2410mm*1500mm*400mm) | |
| Net Weight | 130kg (±5kg) | |
| Gross Weight | 263kg (±5kg) | |
| Package | Caron, Wooden Box | |
| | | |
1) The most widely used electromagnetic shielding door nowadays. The access control system can be added.

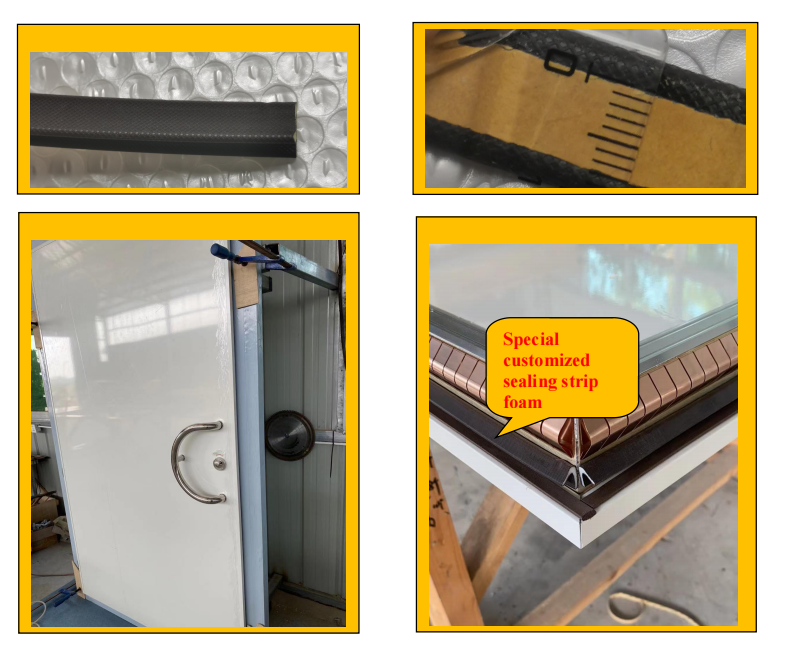

2) High-performance ance Becu fingertips, long service life, easy and convenient to open and close.
3) Hinge rotation, single & double knife-edge technology, double shielding effectiveness performance
4) Two-point latching mechanism for tight, locking seat frame with roller bearings structure, running smooth and light
5) Standard door entrance size is according to the hospital cart pass
6) Non-magnetic materials
7) Door threshold direction could modify during assemble
8) Easy to repair or replace spare parts High performance with reasonable price
Usage

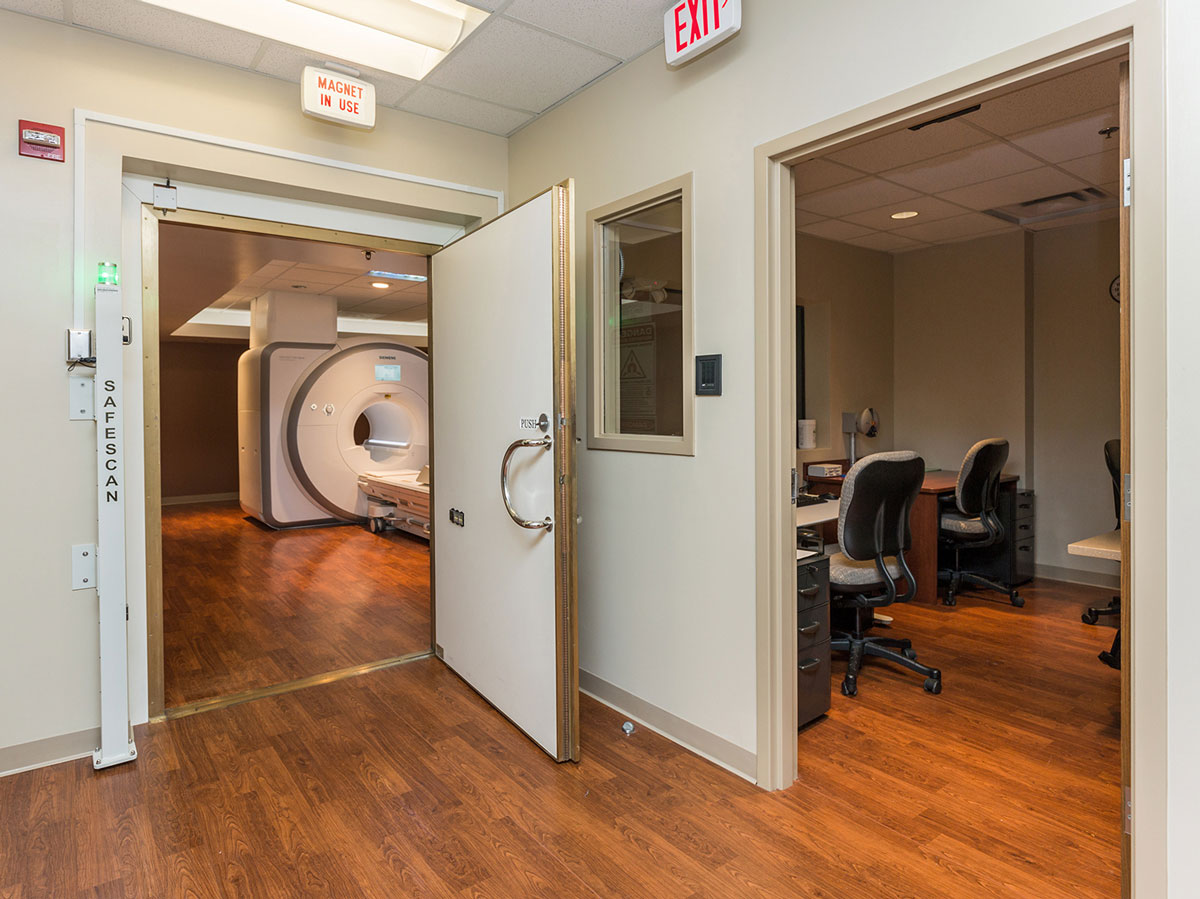

1) Nuclear magnetic resonance( NMR)
2) Shielding room
3) Communications room
4) Security room and labor
Packing
Pack in wooden case
D: Door direction
Offer different door opening directly to our customers.

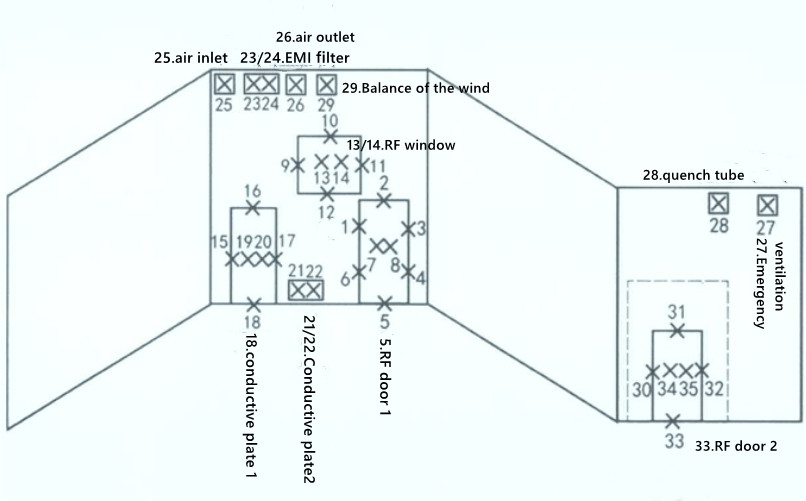

Testing report
| Testing Item |
Testing Frequency |
Test Point No. | Testing Result |
| No Shielded Space Signal
( Unit: dBuV) | Shield Room Signal
( Unit: dBuV) | Shield Performance
( Unit: dB) |
| RF door 1 Shield Performance |
10MHz | 1 | 106 | 5 | 101 |
| 2 | 106 | 6 | 100 |
| 3 | 106 | 5 | 101 |
| 4 | 106 | 5 | 101 |
| 5 | 106 | 4 | 102 |
| 6 | 106 | 5 | 101 |
| 7 | 106 | 4 | 102 |
| 8 | 106 | 4 | 102 |
|
21MHz | 1 | 108 | 7 | 101 |
| 2 | 108 | 6 | 102 |
| 3 | 108 | 7 | 101 |
| 4 | 108 | 6 | 102 |
| 5 | 108 | 6 | 102 |
| 6 | 108 | 6 | 102 |
| 7 | 108 | 6 | 102 |
| 8 | 108 | 5 | 103 |
| 42MHz | 7 | 110 | 8 | 102 |
| 8 | 110 | 9 | 101 |
| 63MHz | 7 | 112 | 11 | 101 |
| 8 | 112 | 10 | 102 |
| 130MHz | 7 | 115 | 14 | 101 |
| 8 | 115 | 14 | 101 |
F: FAQ
Q. What is the door size?
A: We can offer customized size, and in usual 1.2m x 2.1m size is our hot-sale size
Q. What is the structure of the RF Door?
A: Brass foil-covered frame + copper foil + Aluminum plated 1mm coated white+ wooden frame
Q. What accessories can offer?
A: Frame+lock+handle
