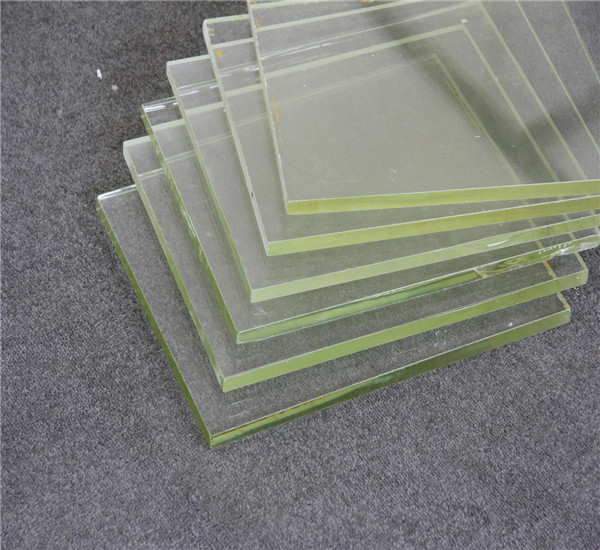

10mm thickness X Ray Proof CT DR Room Shielding Lead Glass Radiation Resistant
Function:
ZF series of high content optical lead glass have main functions in shielding X-ray and nuclear radiation
for being widely used in hospitals radiography and nuclear power plants.
Specification:
| Recommend these sizes and you can also customize. | |
| Size(mm) | Thickness(mm) | |
| 600*400 | 8/10/12/15/18/20 | |
| 1000*800 | 8/10/12/15/18/20/25 | |
| 1200*1000 | 8/10/12/15/18/20/25 | |
| 1500*1200 | 8/10/12/15/18/20 | |
| 1800*1000 | 8/10/12/15/18/20/25 | |
| 2000*1000 | 8/10/12/15/18/20/25 | |
Notices
1. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.
2. When installation, the glass must be mismatched with the wall protection material to prevent radiation
leakage at the joint.
3. As lead glass materials are rich in lead and barium, lead glass is easy to be contaminated by acid and
base,and is not easy to be installed or stored in a sour or humid environment.
Application
Δ X-ray rooms MRI scanning
Δ door glazing
Δ nuclear medicine application
Δ special mitre joint and lamination with float glass allow extended window sizes, creating better observation environments
Δ multiple glazing units providing shaped observation solutions
